Rack Hose -RAS
Single Jacket,EPDM Rubber Liner
Features
•Spun polyester as warp
•Filament polyester as weft/filler
•Easy to deploy
•Low friction loss for maximum flow
•Additional coatings available to increase the abrasion resistance
•Temperature range from -40°F to 158°F(-40°C to 70°C)
|
|

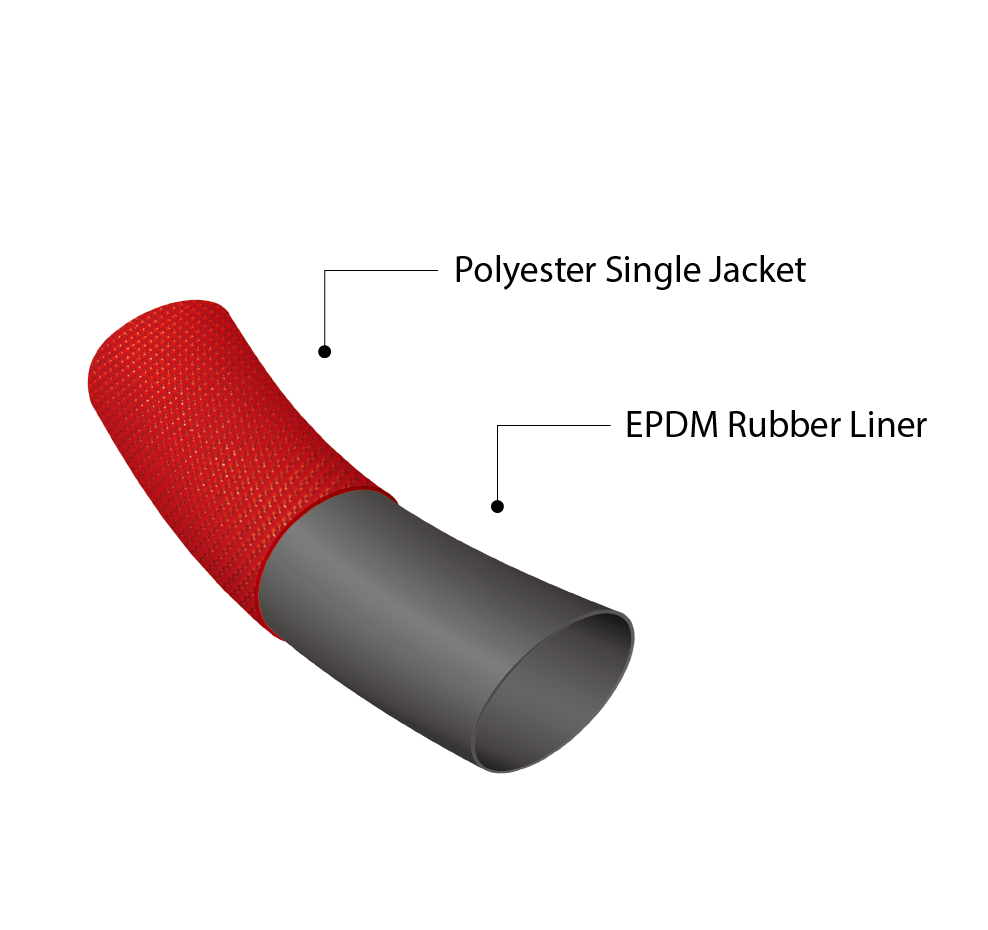

Construction
Standard
Technical Data
| Nominal Size | Working Pressure | Test Pressure | Burst Pressure | Certification | ||||
|---|---|---|---|---|---|---|---|---|
| inch | mm | psi | bar | psi | bar | psi | bar | |
| 1-1/2” | 38 | 150,250 | 10,17 | 300,500 | 20,34 | 450,750 | 30,51 | |
| 1-3/4” | 45 | 150,250 | 10,17 | 300,500 | 20,34 | 450,750 | 30,51 |  |
| 2” | 52 | 150,250 | 10,17 | 300,500 | 20,34 | 450,750 | 30,51 | |
| 2-1/2” | 65 | 150,250 | 10,17 | 300,500 | 20,34 | 450,750 | 30,51 | |
· Model No. 5ESF17-300 for size 1-3/4" WP150PSI
· Model No. 5ESF20-300 for size 2" WP150PSI
· Model No. 5ESF17-500 for size 1-3/4" WP250PSI
· Model No. 5ESF20-500 for size 2" WP250PSI
· Model No. 5ERR25-300EF for size 2-1/2" WP150PSI
· Model No. 5ERR25-500EF for size 2-1/2" WP250PSI
