Attack Hose - FAD
Double Jacket, EPDM Liner or TPU Liner
Features
• Polyester double jacket provides outstanding abrasion resistance, EPDM lining has good resistance to ageing and chemicals
• TPU lining is also available which provides lowest friction loss and is less-weighted
• Optional innovative Wisentec™ coating of NFPA colors provides mildew protection and increases resistance to abrasion, heat, flame petro-chemical
• Remain Fexible at the temperature as low as -40°F / -40°C
• Applicable to Brass/Alu NST/NPSH threaded couplings, other type on request
• Standard length 50’, 100’, 200’, other length on request
|
|

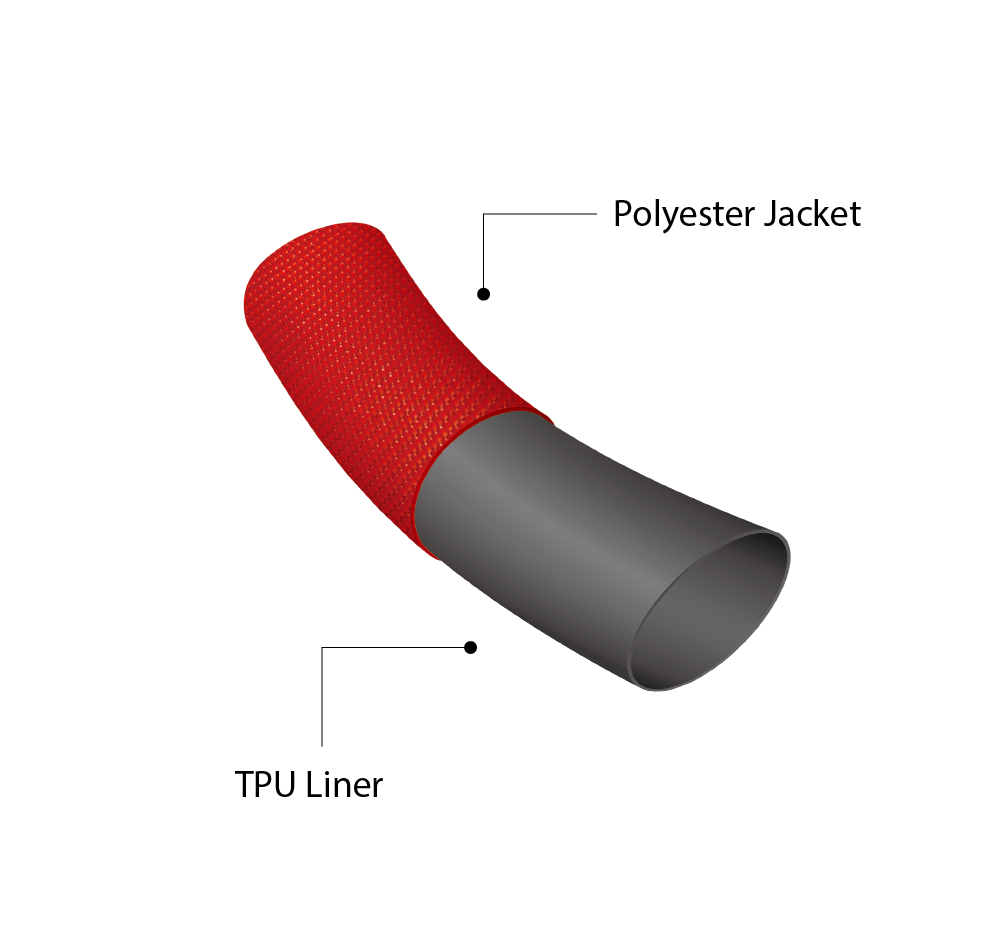

Construction
Standard
Technical Data
| Nominal Size | Working Pressure | Test Pressure | Burst Pressure | Certification | ||||
|---|---|---|---|---|---|---|---|---|
| inch | mm | psi | bar | psi | bar | psi | bar | |
| 1-1/2” | 38 | 400 | 28 | 800 | 56 | 1200 | 84 |
|
| 1-3/4” | 45 | 400 | 28 | 800 | 56 | 1200 | 84 | |
| 2” | 52 | 400 | 28 | 800 | 56 | 1200 | 84 | |
| 2-1/2” | 65 | 400 | 28 | 800 | 56 | 1200 | 84 | |
| 3” | 75 | 400 | 28 | 800 | 56 | 1200 | 84 |   |
| Nominal Size | Working Pressure | Test Pressure | Burst Pressure | Certification | ||||
| inch | mm | psi | bar | psi | bar | psi | bar | |
| 1-1/2” | 38 | 300 | 21 | 600 | 42 | 900 | 63 | |
| 2-1/2” | 65 | 300 | 21 | 600 | 42 | 900 | 63 | |
