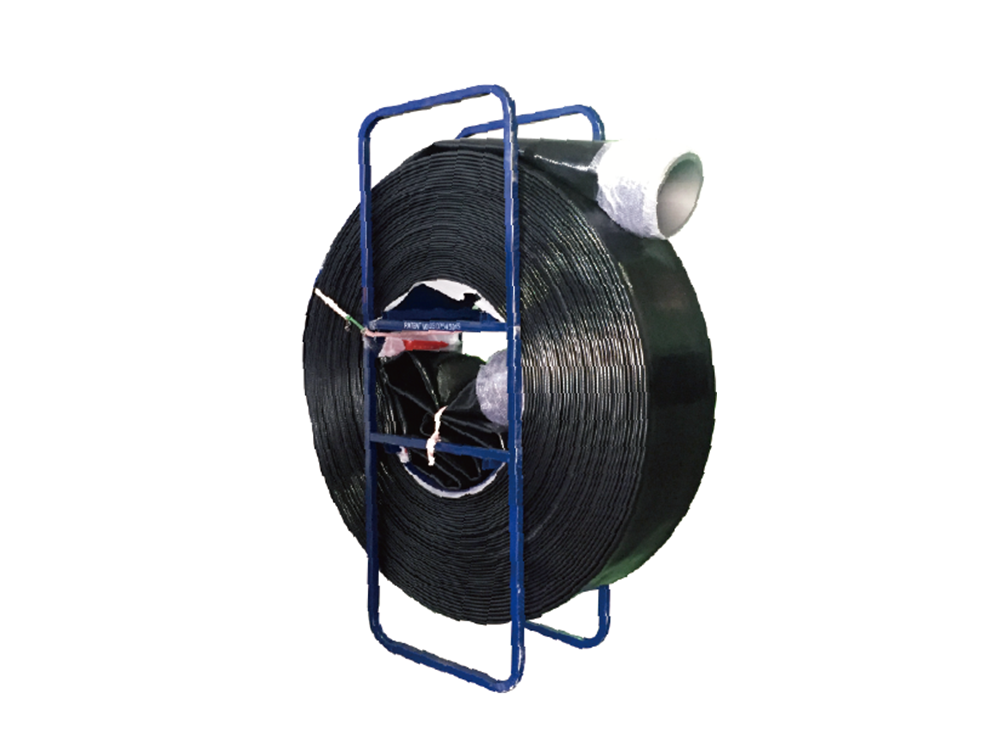

Anti-Static Polyurethane Layflat Hose
TPU As Cover & Liner, Copper Wires Through The Length To Conduct Static
Overview
•Long life and maintenance-free service in the harshest environments
•Excellent resistance to abrasion, puncture and delamination
•Minimum pressure loss & low elongation
•With copper wires inside to be anti-static
•Temperature range from -85°F to 158°F (-65°C to 70°C)
•Standard Color: Black, Others on Request
•Standard Length: 660', Others on Request
•Hose Ends: Uncoupled, Anodized Aluminum V-Style Groove Couplings, Others on Request
|
|

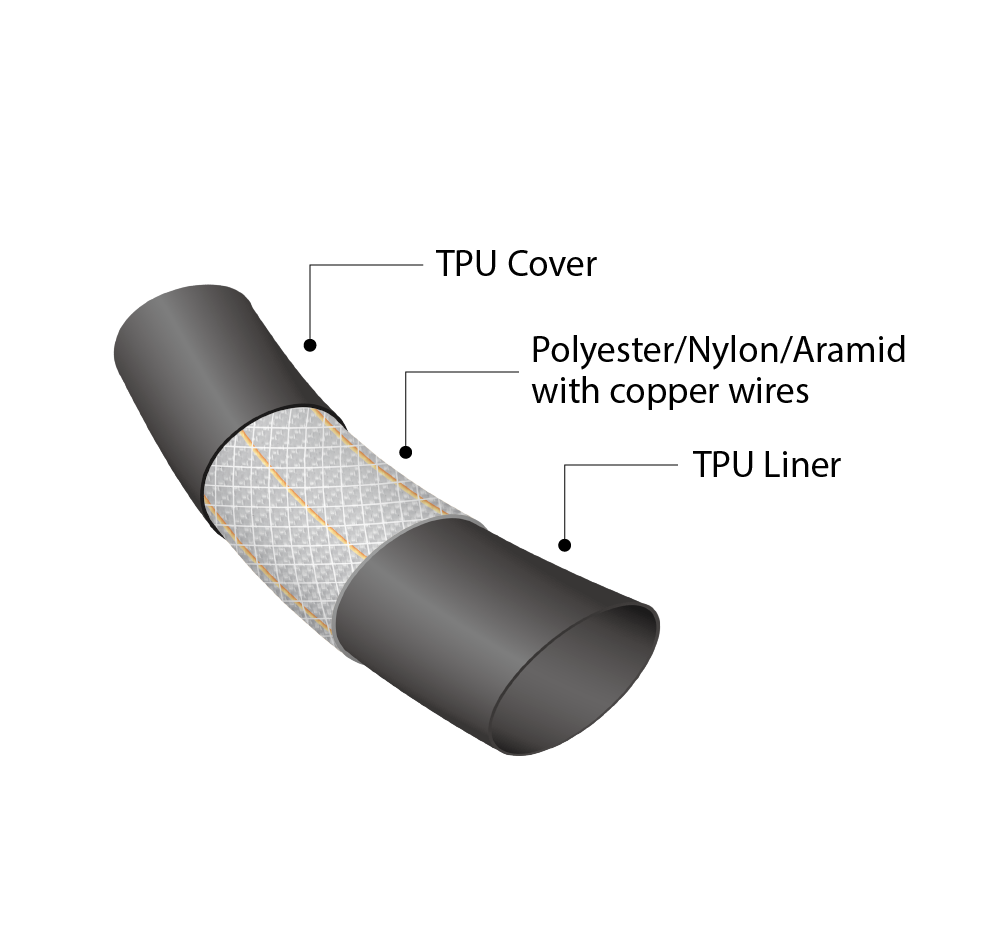

Construction
Features
Technical Data
| Nominal Size | Working Pressure | Burst Pressure | Weight | Wall Thickness | Tensile Strength | Bend Radius | |
| inch | mm | bar | bar | g/m | mm | kg | mm |
| 1-1/2'' | 38 | 40 | 120 | 600 | 3.2 | 3800 | 800 |
| 2'' | 52 | 28 | 84 | 450 | 3.0 | 6600 | 1100 |
| 40 | 120 | 700 | 3.6 | 7800 | 1200 | ||
| 2-1/2'' | 65 | 28 | 84 | 710 | 3.0 | 8000 | 1300 |
| 3'' | 75 | 28 | 84 | 1260 | 4.2 | 10940 | 1650 |
| 40 | 120 | 1470 | 4.5 | 12470 | 1800 | ||
| 4'' | 102 | 28 | 84 | 1760 | 4.3 | 27311 | 1800 |
| 40 | 120 | 2100 | 5.0 | 28792 | 1900 | ||
| 5'' | 125 | 28 | 84 | 2200 | 5.0 | 31245 | 2200 |
| 40 | 120 | 2600 | 5.0 | 59000 | 2400 | ||
| 6'' | 152 | 28 | 84 | 2800 | 5.0 | 41842 | 2500 |
| 40 | 120 | 3200 | 5.0 | 71771 | 2700 | ||
| 8'' | 200 | 28 | 84 | 3200 | 4.8 | 93714 | 3500 |
